Furnace

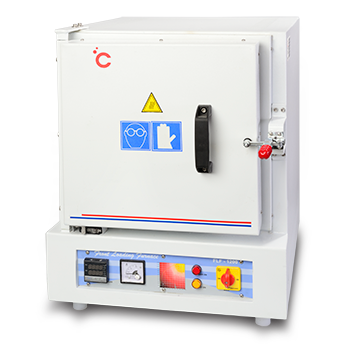

APM SERIES - 1200°C/1400°C - FRONT LOADING MODEL

  • Double walled in construction Inner made of Ceramic board bricks & Exterior made of GI sheet duly finish in powder coated shade in REGULAR MODEL.
  • Outer SS 304 Matt/Buff finish in GMP MODEL.
  • The high grade Vacuum pressed board and Cerawool Insulation with blanket is provided in between the walls to minimize the heat loss.
  • The Temp. is being controlled by Microprocessor Based PID Temp. Controller with Dual Digital Indicator and CR/AL or PT PT RH Sensor.
  • The control system is incorporated with Solid-State Fuse to protect the Heating element incase of overshoot of Temp.
  • Exhaust fan is provided for extraction of oxidizing gases which occur during the burning and homogenous heating.
  • A sturdy mechanism and alignment is provided for insulated door having easy opening and closing.
  • Limit Switch is provided to disconnect heater supply automatically when door is open.
Furnace
Cat No.
Inner Size Chamber (L x W x D)
Working Temp.
Max. Temp.
Volts
CIC-44A
6" x 6" x 9"
1150oC
1200oC
230 Volts
CIC-44B
8" x 8" x 13"
1150oC
1200oC
230 Volts
CIC-44C
6" x 6" x 9"
1350oC
1400oC
440 Volts
CIC-44D
8" x 8" x 13"
1350oC
1400oC
440 Volts

Optional

  • PROGRAMMABLE PID TEMPERATURE CONTROLLER.
  • PRINTER OUTPUT facility required to record PV, SV, Actual Date/Time with variable print time interval, 5000 line memory & Audio alarm facility in case of memory full.
  • AUDIO ALARM facility to alert for Temp. Overshoot/undershoot.
  • 21 CFR PART 11 COMPLIANCE SOFWARE for Data Management.
