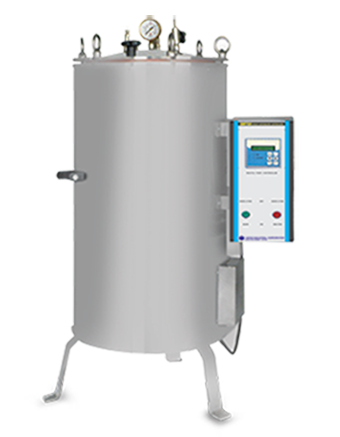

Autoclave (Fully Automatic)

GMP - Model

  • Fully Automatic Autoclave – most useful to sterilizer Lab Glassware, Plastic Tubing, liquid in sealed glass containers and many more uses.
  • Fully Argon welded to avoid steam and pressure leak.
  • Double walled in construction with Inner SS 304 & Outer SS 304 Matt/Buff or Mirror finish.
  • The Temp. is being controlled by Microprocessor based PID Temp. Controller with Dual Digital Indicator and Sensor.
  • The cycle begins with press of a start switch for fully automatic operation.
  • Automatic steam and air exhaust at end of cycle.
  • Specially designed heaters reduces power consumption.
  • Removable SS wiremesh/ rod carrier supported on footed, SS frame in built.
  • Water low level alarm indication and heater cut off facility.
  • Lid is equipped with pressure guage range 0 to 20 PSI, safety valve and exhaust valve.
  • Safety valve, Steam release Exhaust Valve, Vacuum breaker – for more safety.
  • Temperature Range: upto 1210oC
  • Temperature Accuracy: ± 1oC.
  • Pressure Range: 0 to 21 P.
Autoclave Fully automatic

Reference Model Cylindrical / Vertical

Cat No.
Inner Size
Capacity Ltrs.
Vessel Type
No. of Shelves Basket
Steam Source Supply
CIC - 125 A
12" Dia x 20" Depth
36 Ltrs.
Cylindrical
1 No.
Direct
CIC - 125 B
14" Dia x 22" Depth
55 Ltrs.
Cylindrical
2 No.
Direct
CIC - 125 C
18" Dia x 28" Depth
125 Ltrs.
Cylindrical
2 No.
Direct
CIC - 125 D
22" Dia x 30" Depth
186 Ltrs.
Cylindrical
2 No.
Direct
CIC - 125 E
28" Dia x 30" Depth
300 Ltrs.
Cylindrical
2 No.
Direct

Reference Model Round

Cat No.
Inner Size
Capacity Ltrs.
Vessel Type
No. of Shelves Basket
Steam Source Supply
CIC - 42 A
9" Dia x 15" Depth
16 Ltrs.
Round
2 No.
Direct
CIC - 42 B
9" Dia x 18" Depth
22 Ltrs.
Round
2 No.
Direct

Optional

  • PRINTER OUTPUT facility required to record PV, SV, Actual Date/Time with variable print time interval, 5000 line memory & Audio alarm facility in case of memory full.
  • AUDIO ALARM facility to alert for Temp. Overshoot/undershoot.
  • 21 CFR PART 11 COMPLIANCE SOFTWARE for Data Management with F0 value calculation.
  • Temperature Scanner having 2 temp. probes to monitor and record temp. inside the equipment with printing facility.
  • Digital Pressure Indication.
